Model No.		NST-IPH5115-ANPR-VF0622	NST-IPH5115-ANPR-AF0622	NST-IPH5115-ANPR-AF0550
Camera Type		5MP ANPR IP Camera
System		Embedded RTOS design
Camera	Effective Pixels	5.0 Megapixels
		Main stream:25921944@25/30fps ,23041728,20481536,16001200,1280*960
		Sub stream:704*576@25fps
	Image Sensor	1/2.7" Cmos Sensor
	Soc Chipset	T41
	Min. Illumination	Color 0.01Lux/F1.2
		B/W 0.001 Lux/F1.2
Video	Compression	H.265/H.264 Main profile
	Stream	support dual stream,
	Bit Rate	support 512Kbps~5000Kbps bit rate adjustable
	Frame Rates	support 1~30fps adjustable
Audio	Input and output	Two Way Audio
	Compression	G.711/AAC compression,support two-way audio intercom,support audio and video synchronized output
Network	WEB Browser	Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)
	Network	10/100M,Support HTTP，MQTT，RTSP，TCP/IP，UDP，RGA/TS485，NT/TP，GA/T1400，GB28181
	ONVIF	Support (ONVIF 2.4)
	POE	Support(optional)
General	Lens Mount	Manual Varivfocal Lens 2.8-12mm	Motorized Zoom Auto focus Lens 6-22mm	Motorized Zoom Auto focus Lens 5-50mm
	Aux Luminary	4pcs White Light LED
	Illuminate Distance	40m
	Waterproof Criterion	IP 66
	Memory	Front-end video storage 32GB
	I/O Interface	1DC Connector ,1 RJ45(10/100M Network),1* RJ45(100/1000M Network),2RS485,4IO Input,1*TF card slot, up to 256GB
	Supplied Voltage	DC12V/PoE(802.3af/820.3at)
	Power Consumption	LED On: 600mA max., LED Off: Less than 200mA
	Working Environment	-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
	Weight	1.9kg

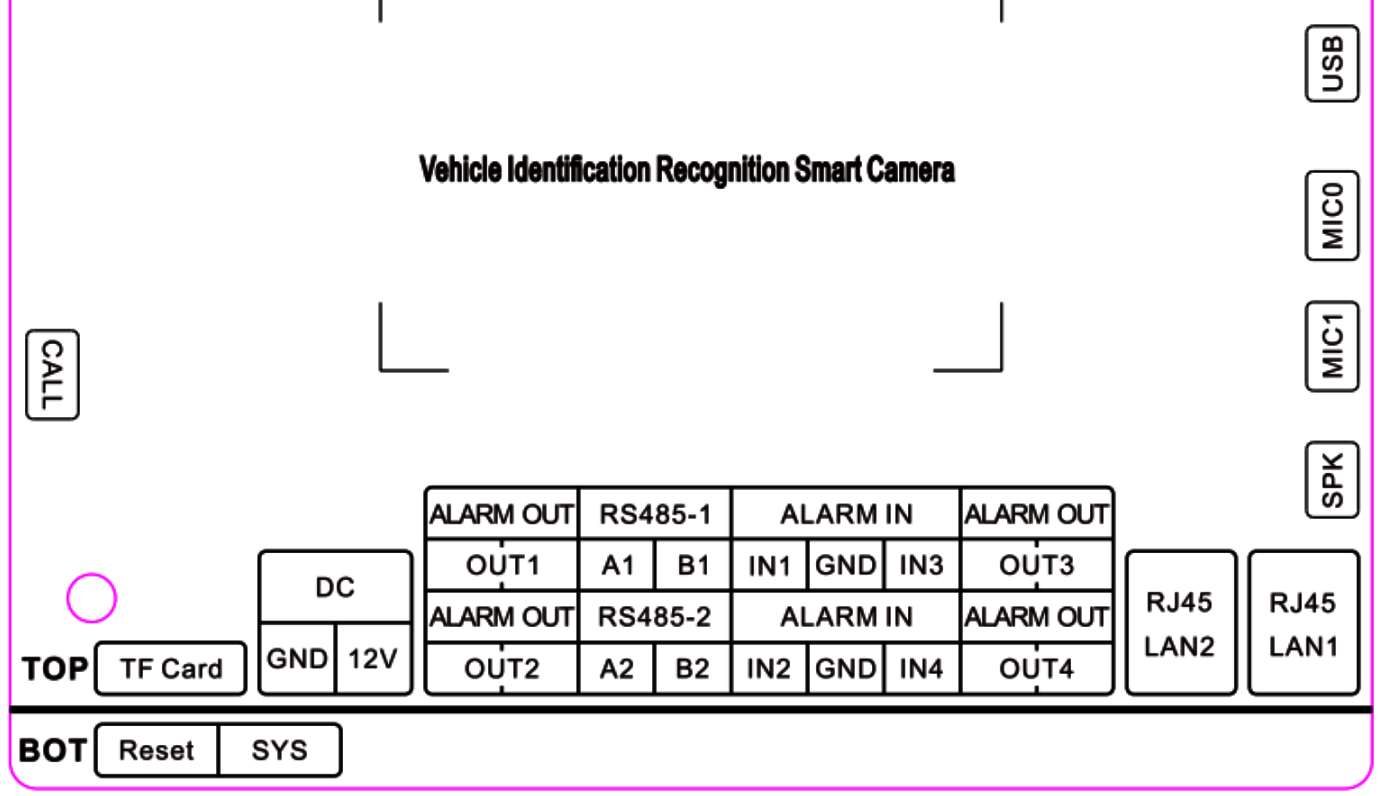

Interface name	characteristic	function declaration
Power Supply (DC)	GND/12V	Support standard 12V/2A~5A
Netw ork interface 1	RJ45LAN1	Supports 10/100/1000 Mbps Ethernet transmission
Network interface 2	RJ45LAN2	Supports 10/100 Mbps Ethernet transmission
IO output (ALARM OUT)	OUT1/OUT2/OUT3/OUT4	Can be used for barrier lifting (switch quantity)
IO import (ALARM IN)	IN1/IN2/IN3/IN4/GND	Can be grounded to sense the coil for external signal triggering of capture (switching quantity)
Serial port (RS485-1)	A1/B1	Connect to the host computer and output the recognition results
Serial port (RS485-2)	A2/B2	Connect to the upper computer and output the recognition results
TF card slot	TF CARD	TF card storage, up to 256G
SYS LED	SYS	The power is always on, and the indicator light flashes (green) when the equipment is running normally
Reset button	Reset	After power on, long press for 5~10 seconds to restore the factory configuration of the device
CALL	CALL	Triggered by voice intercom
SPK	SPK	The Speaker , the maximum output power is 4 Ω 12W
Microphone interface 0	MIC0	Microphone input port
Microphone port 1	MIC1	Microphone input port
USB	USB	Used for 4G module

5MP License Plate Recognition ANPR LPR Capture IP Camera Reader System For Al-in-one Exit/Entrance Parking
