16 CH
Maximum resolution 8 Mpx
Supported incoming bandwidth 160 Mbps
Compression H.265+/H.265/H.264+/H.264
Outputs 4K HDMI & VGA
Motion detection 2.0 4 channels
IP Dual Stream Access
Mouse
Space for 2 HDD
WEB, CMS and Smartphone interface
ONVIF Compatible
SEND INQUIRY NOW

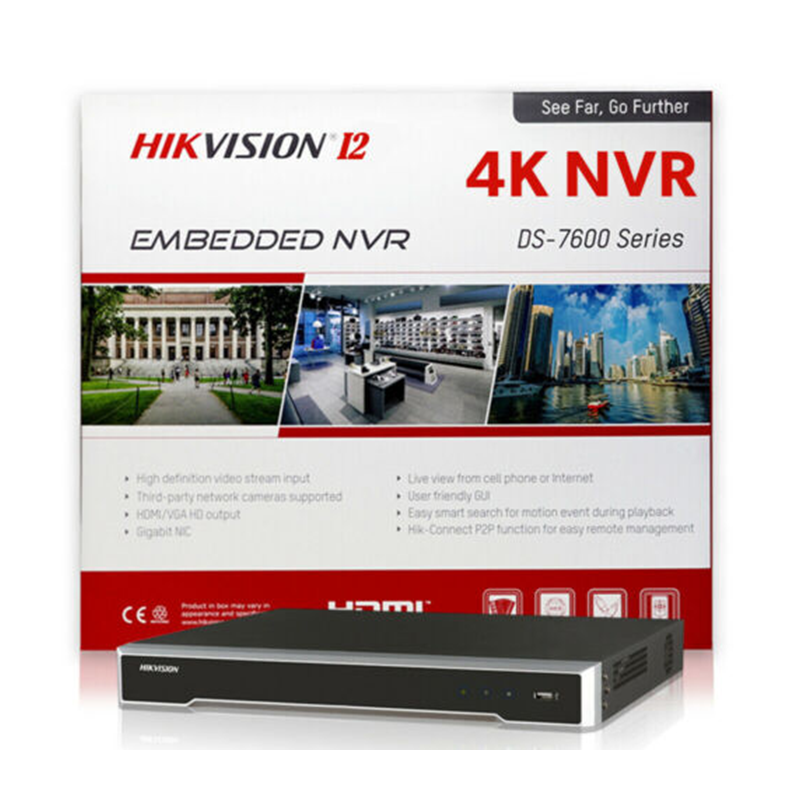

DS-7616NI-Q2
Video And Audio
IP Video Input16-ch
Incoming Bandwidth160 Mbps
Outgoing Bandwidth80 Mbps
HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output ModeHDMI/VGA simultaneous output
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
Decoding FormatH.265+,H.265,H.264+,H.264
Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Decoding Capability
1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Synchronous Playback16-ch
Network
Remote Connection32
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA2 SATA interfaces
CapacityUp to 8 TB capacity for each disk
USB Interface2 × USB 2.0
General
Power Supply12 VDC, 3.33 A
Consumption≤ 15 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10 to 90 %
Chassis1U chassis
Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Weight≤ 1.8 kg (without HDD, 4.0 lb.)
