License plate recognition camera parking lot charging system

A set of license plate recognition cameras shall be configured at the entrance and exit respectively

SEND INQUIRY NOW

SEND INQUIRY NOW

License plate recognition camera parking lot charging system

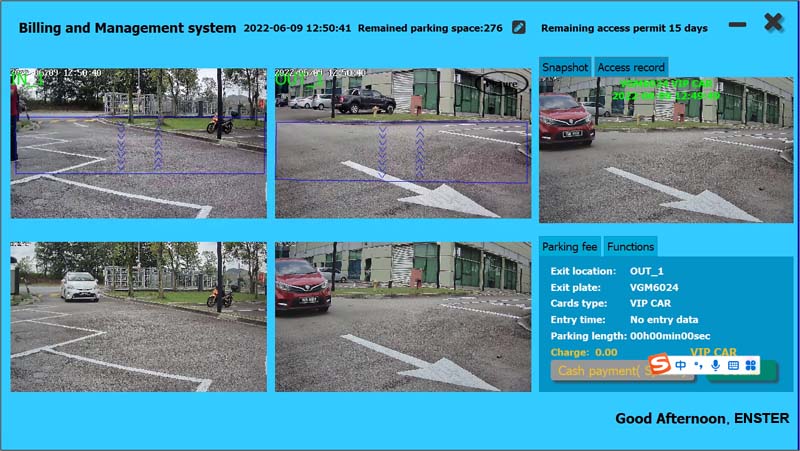

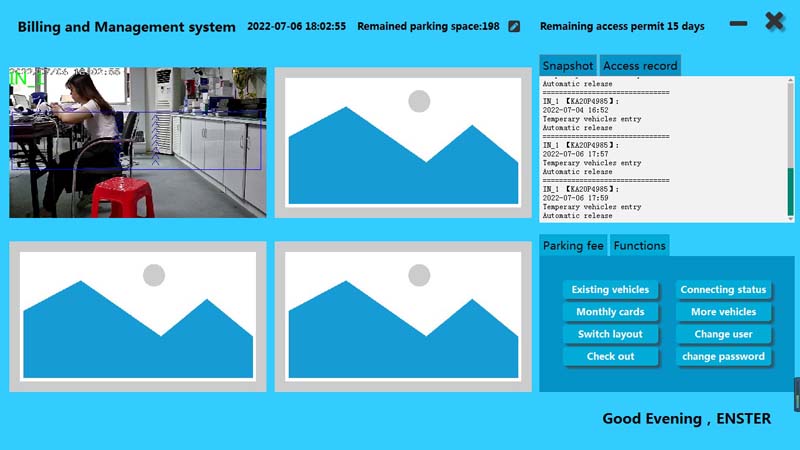

Parking platform Software*1

License plate recognition camera parking lot charging system software,

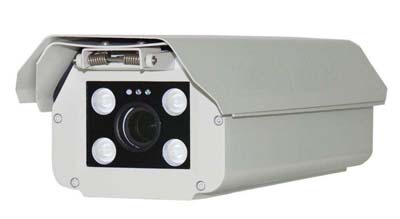

ANPR Camera(NST-IPC5112-ANPR)*2
1.cpu:Hisilicon, specialized license plate recognition chip
2.Sensor:1/3" CMOS Image Sensor Minimum illumination:0.01Lux Lens:6mm fixed focus lens
3.Built-in light:4 high-power LED white lights
4.Plate recognition accuracy:≥97% Plate types:Overseas licence plate
5.Triggering mode:Video trigger, coil trigger
6.Image output:1080P(1920x1080),960P(1280x960),720P(1280x720),D1(704x576),CIF(352x288)
7.Picture output:2 mega-pixel JPEG
8.Video compression format::H.264 High Profile , Main Profile, Baseline , MJPEG
9.Network interface:10/100,RJ45
10.IO:2 input & 2 output 3.5mm connecting terminals
11.Serial interface:2 x RS485
12.Audio interface:1 input & 1 output
13.SD card:Support SD2.0 standard Micro SD(TF) card with a maximum capacity of 32G
14.Power supply:AC220V Power consumption:≤7.5W Working temperature:-25℃~+70℃
15.Protection grade:IP65
16.Size(mm):452(L)*148(W)*120(H) Weight:2.7kg

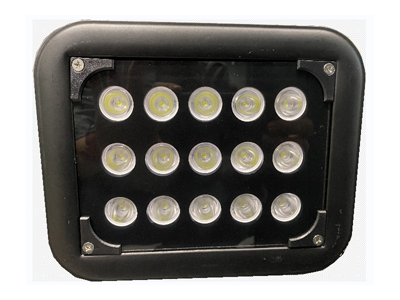

Fill-in Light*2

1.light source 12 wafer white LED

2.Lighting distance 10 Meters

3.Color temperature 6000-6500K

4.Turn on illuminance 10Lux

5.power waste 12W

6.Waterproof grade：IP65

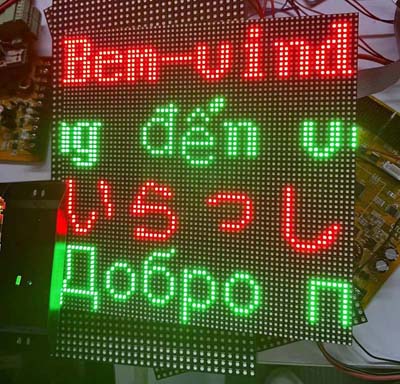

LED Display*2

1.working temperature:-30℃~ 80℃

2.Voltage AC90~264V

3.Display size 1280*800

4.Rated power 36W

5.Display brightness 10000cd/m2

Column*2

1.height 1.2m

2.diameter 8cm

3.thickness 1.5mm

4.material:iron

5.color:white or black
